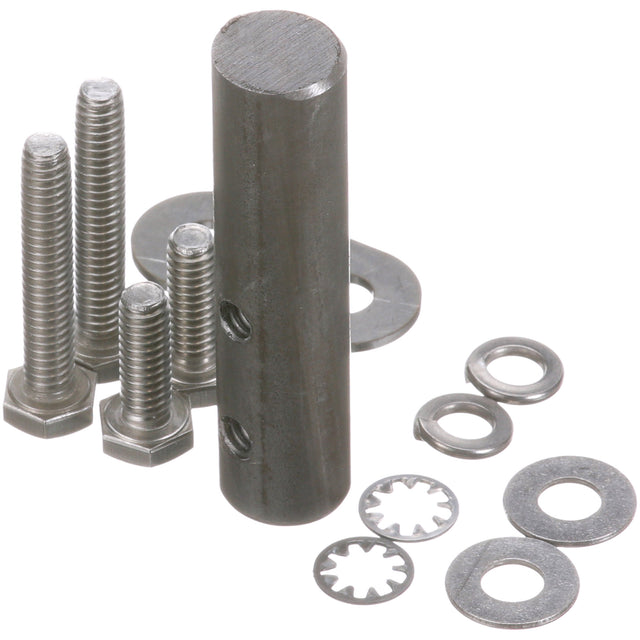

Blodgett 8338 - Hinge Pin Assembly with Hex Bolts and Star Washers

Blodgett 8338 - Hinge Pin Assembly with Hex Bolts and Star Washers

Product Brand: Blodgett
OEM Part Number: 8338
Title: Hinge Pin Assembly

Description

Introducing the Blodgett 8338 Hinge Pin Assembly — a robust and precision-engineered component designed to offer unbeatable durability and seamless functionality for your appliances. Tailored to meet the demanding needs of commercial kitchens, this innovative hinge pin assembly ensures that your Blodgett equipment operates at its peak efficiency.

Constructed from high-quality materials, the Blodgett 8338 Hinge Pin Assembly measures 2-11/16 x 5/8 inches. The product package includes a variety of essential components, engineered for a precise fit and easy installation:

• 2 each of 1-1/2 inch x 1/4-20 hex bolts: These hex bolts ensure secured fastening and long-lasting support.
• 2 each of internal star washers: Known for their superior locking abilities, these star washers aid in preventing the fasteners from loosening over time, providing additional stability to the hinge assembly.
• 2 each of 3/4 inch x 1/4-20 hex bolts: These smaller bolts offer added convenience for specific adjustments and tweaks.
• 2 each of 1/4 flat washers: For a smooth and even distribution of load, ensuring the bolts stay securely in place.
• 2 each of 1/4 lock washers: These lock washers serve as an additional safety feature, preventing any unintended loosening of bolts.

This hinge pin assembly is specifically designed for use with Blodgett models KCO-25E and CTB produced after September 1986. Made in the United States, it assures you of the quality and reliability synonymous with American manufacturing.

Common Uses

The Blodgett 8338 Hinge Pin Assembly is primarily employed for the maintenance and repair of commercial ovens, specifically those manufactured by Blodgett. It is an essential part for:

• Maintaining oven doors: Ensuring the doors open and close smoothly, maintaining a tight seal to keep heat and steam within the oven chamber.
• Upgrading existing appliances: Can be used to upgrade older models to newer configurations, promoting better performance.
• Repairing damaged units: Offers a reliable replacement solution, extending the lifespan of the appliance.

Also Known As

In various professional environments, this hinge pin assembly may be referred to as:

• Replacement Hinge Pin Set
• Blodgett Oven Hinge Kit
• Commercial Oven Door Hinge Assembly
• Hinge Pin Repair Kit

This versatility and precision-engineering make the Blodgett 8338 Hinge Pin Assembly an indispensable component for maintaining the high standards expected in commercial kitchens.

Specifications

• Country of Origin: United States
• Hinge Pin Length: 2-11/16 inches
• Bolt Diameter: 5/8 inch
• Included Hex Bolts:
  • 2 x 1-1/2 inch x 1/4-20 hex bolts
  • 2 x 3/4 inch x 1/4-20 hex bolts
• Washers:
  • 2 internal star washers
  • 2 flat washers (1/4 inch)
  • 2 lock washers (1/4 inch)
• Compatible Models: Blodgett KCO-25E, CTB after 9/86

The Blodgett 8338 Hinge Pin Assembly stands as a testament to meticulous engineering and high-quality materials, offering reliability and ease of maintenance, ensuring your commercial kitchen remains operational and efficient.

Quick Overview: HINGE PIN ASSEMBLY;2-11/16 X 5/8 W/ 2 EA 1-1/2 X 1/4-20 HEX BOLTS, ;2EA INTERNAL STAR WASHERS, 2EA3/4 X 1/4-20 HEX BOLTS,; 2EA 1/4 FLAT WASHER, 2EA 1/4 LOCK WASHER;BLODGETT KCO-25E, CTB AFTER 9/86
Replacement for Blodgett Part: 8338
Replacement for OEM Brand: Blodgett
Country of Origin: United States
HINGE PIN ASSEMBLY
2-11/16 X 5/8 W/ 2 EA 1-1/2 X 1/4-20 HEX BOLTS,
2EA INTERNAL STAR WASHERS, 2EA3/4 X 1/4-20 HEX BOLTS,
2EA 1/4 FLAT WASHER, 2EA 1/4 LOCK WASHER
BLODGETT KCO-25E, CTB AFTER 9/86
